Aluminum Window And Door Profile Machining

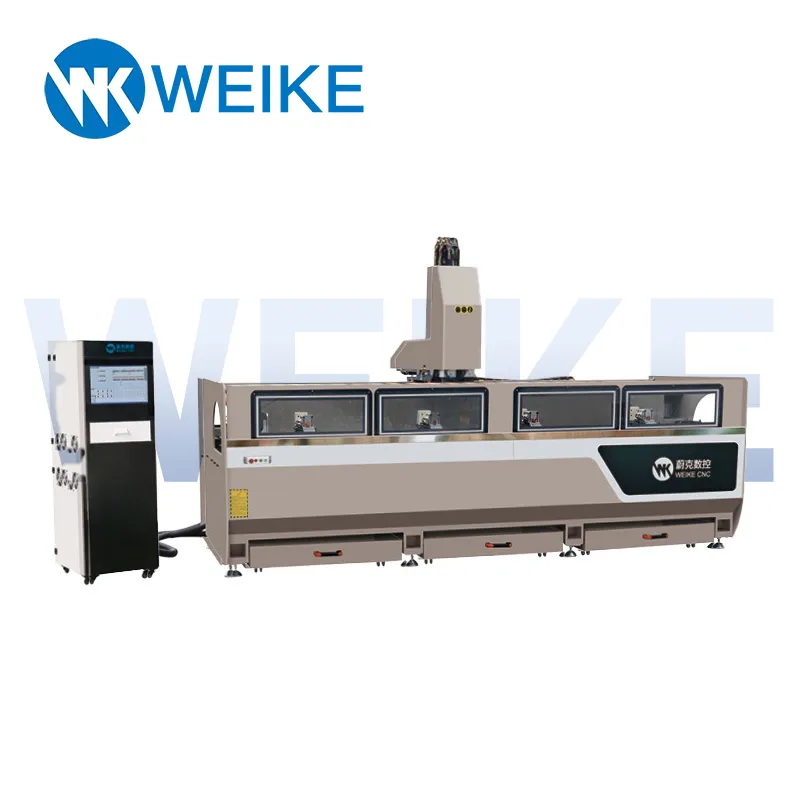

Double-Head 3200mm CNC Drilling & Milling Machine

CNC dual-head 3200mm drilling/milling for Al. Dual spindles, 3-sided table, full-servo control for large-scale production.

Model	WSZ2-CNC-3200
Spindle Speed	18000 r/min
Processing Range	130 × 150mm
X-axis Travel	3200 mm
Y-axis Travel	400 mm
Z-axis Travel	300 mm

Product Details:

WEIKE Double-Head 3200mm CNC Drilling & Milling Machine is designed for high-efficiency processing of aluminum profiles used in windows, doors, and curtain walls. Featuring a dual-spindle design, this machine can simultaneously process both ends of the profile, significantly improving productivity. The 3200mm X-axis travel supports long profiles, making it suitable for large-scale production environments.

With full-servo motion control and advanced CNC capabilities, the machine ensures precise, stable drilling, milling, and chamfering operations. The worktable can rotate from −90° to +90°, enabling three-sided machining with a single clamping, enhancing both efficiency and machining quality.

CNC Double-Head Any Angle Cutting Saw

CNC dual-head saw for Al profiles. Servo absolute memory, no homing. Supports data & barcode.Safe.

CNC Connector Aluminum Profile Cutting Saw

CNC 9o° saw for Al connector profiles. PLC-controlled auto feeding. Hard alloy blade for hish-speed efficient mass production

Intelligent Laser Cutting & Milling Center

Intelligent laser cutting & milling center for Al. 4 spindes + laser, 45-135°. ERP/design software integration, o.1mm accuracy.

Double-Head 3000mm CNC Drilling & Milling Machine

CNC dual-head 300omm drilling/miling for Al, Dual spindes, 3-sided table, CAD import & barcode support for automated productio

F.A.Q.

Frequently Asked Questions

How is stability ensured during long-length machining?

Full-servo motion control with rack-and-pinion drive guarantees smoothfeeding and consistent accuracy throughout the entire 3000 mm range.

Can both heads operate independently?

Yes. Each spindle can work separately or in synchronization, depending onthe program and part requirements.

What profiles can it handle?

It’s ideal for aluminum window, door, and curtain wall profiles up to 3meters long.

What is the maintenance requirement?

Regular hydraulic oil checks, air system cleaning, and basic lubricationkeep the machine performing reliably.

Can this machine be customized for specific needs?

Yes. As a leading manufacturer, WEIKE CNC proudly offers OEM and ODMservices, allowing fully customized and flexible configurations to meetyour material types, cutting length requirements, or production linespecifications.

What maintenance is required for optimal performance?

Routine maintenance includes checking and lubricating the guide rails,ensuring spindle alignment, and cleaning debris after each shift.Following these steps helps maintain precision and prolong the machine’slifespan.
