Aluminum Window And Door Profile Machining

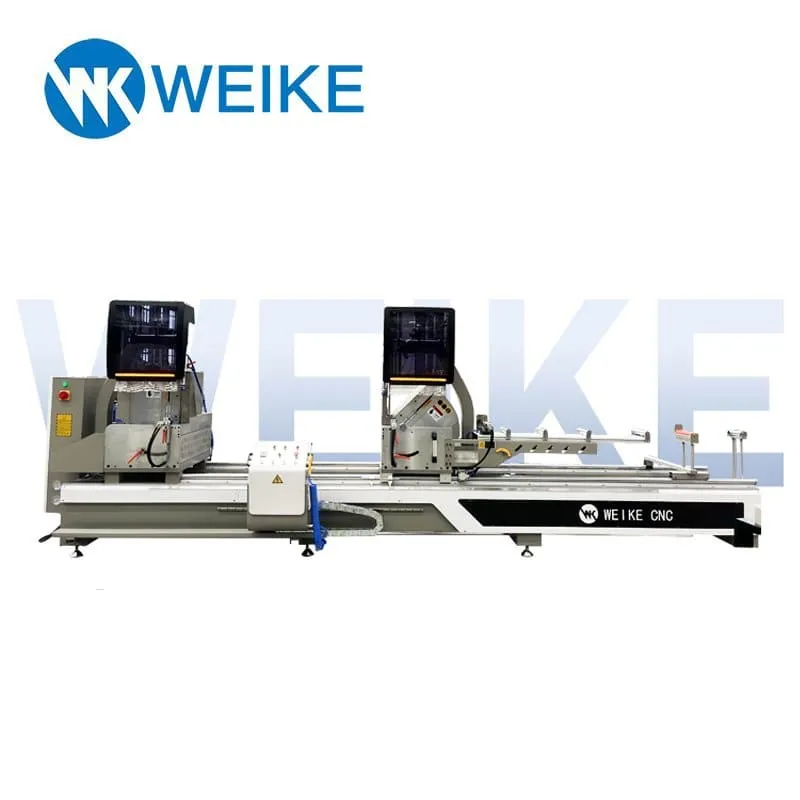

Digital Display Aluminum cutting saw

Digital display dual-head mitre saw for Al profiles. Servo 45°–135° angle adjust. Linear guides, dust extraction & safety features.

Model	WJMS-500/600×4200
Saw Blade	Φ500×Φ30×4.4 mm
Saw Speed	2800 r/min
Cutting Length	350-4200 mm
Cutting Width	150 mm
Cutting Thickness	180 – 240 mm
Cutting Angle	135°, 45°, 90°
Dimensions	5800 × 1500 × 1700 mm
Working Pressure	0.6 – 0.8 MPa

Product Details:

WEIKE Digital Display Double-Head Mitre Saw Cutting Machine is designed for precision cutting of aluminum profiles in window, door, and curtain wall fabrication. With a digital display for accurate length positioning and a servo-driven right head, it automatically adjusts cutting angles between 45°-135°.

Imported high-precision linear guide rails ensure smooth, stable cutting, while the robust spindle system guarantees consistent performance and long-term reliability. Equipped with safety features and dust extraction mechanisms, it provides a cleaner, safer working environment. Customizable in cutting size, the WEIKE Double-Head Mitre Saw is a dependable and versatile choice for aluminum window, door, and furniture production.

CNC Double-Head Any Angle Cutting Saw

CNC dual-head saw for Al profiles. Servo absolute memory, no homing. Supports data & barcode.Safe.

CNC Connector Aluminum Profile Cutting Saw

CNC 9o° saw for Al connector profiles. PLC-controlled auto feeding. Hard alloy blade for hish-speed efficient mass production

Intelligent Laser Cutting & Milling Center

Intelligent laser cutting & milling center for Al. 4 spindes + laser, 45-135°. ERP/design software integration, o.1mm accuracy.

Double-Head 3000mm CNC Drilling & Milling Machine

CNC dual-head 300omm drilling/miling for Al, Dual spindes, 3-sided table, CAD import & barcode support for automated productio

F.A.Q.

Frequently Asked Questions

How is stability ensured during long-length machining?

Full-servo motion control with rack-and-pinion drive guarantees smoothfeeding and consistent accuracy throughout the entire 3000 mm range.

Can both heads operate independently?

Yes. Each spindle can work separately or in synchronization, depending onthe program and part requirements.

What profiles can it handle?

It’s ideal for aluminum window, door, and curtain wall profiles up to 3meters long.

What is the maintenance requirement?

Regular hydraulic oil checks, air system cleaning, and basic lubricationkeep the machine performing reliably.

Can this machine be customized for specific needs?

Yes. As a leading manufacturer, WEIKE CNC proudly offers OEM and ODMservices, allowing fully customized and flexible configurations to meetyour material types, cutting length requirements, or production linespecifications.

What maintenance is required for optimal performance?

Routine maintenance includes checking and lubricating the guide rails,ensuring spindle alignment, and cleaning debris after each shift.Following these steps helps maintain precision and prolong the machine’slifespan.
