WEIKE CNC MACHINES

Aluminum Window And Door Profile Machining

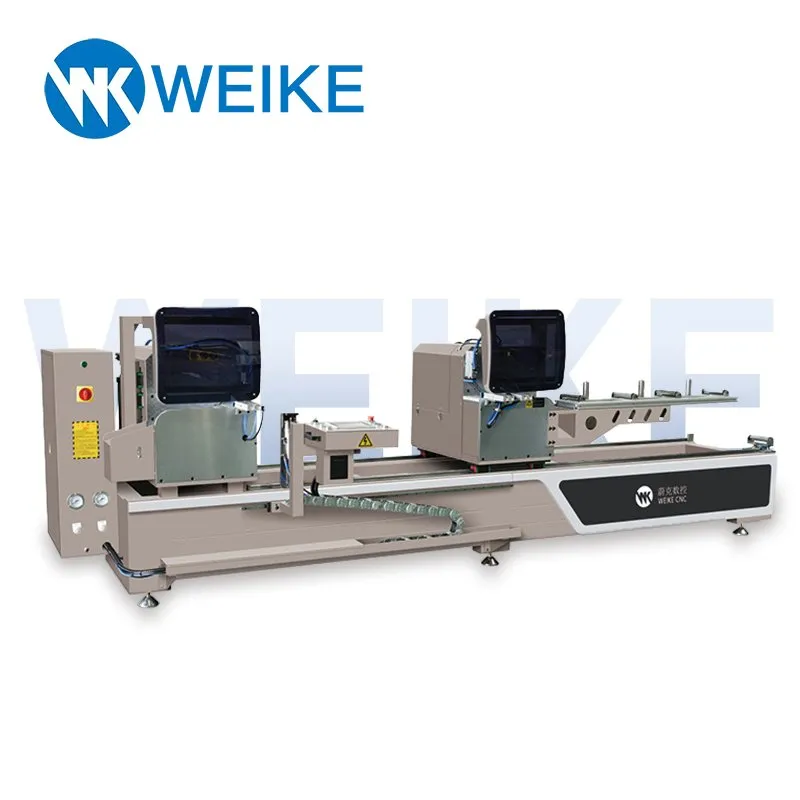

45 Degree Special CNC Cutting Saw

CNC dual-head 45° mitre saw for Al profiles. Servo positioning, stable accuracy. Dust extraction & auto shield for clean, safe operation.

Model	WSJ-CNC-450×3000
Saw Blade	Φ450×Φ30×4mm
Saw Speed	2800 r/min
Cutting Length	200 – 3200 mm
Cutting Width	100 – 120 mm
Cutting Thickness	180 – 240 mm
Cutting Angle	45°
Dimensions	4500 × 1600 × 1700 mm
Working Pressure	0.6 – 0.8 MPa

Product Details:

WEIKE 45 Degree CNC Double-Head Mitre Saw Cutting Machine is designed for high-precision 45° cutting of aluminum profiles used in windows, doors, and furniture frames. The CNC control system enables automatic cutting and positioning, while servo motors ensure stable length accuracy and consistent performance.

Imported high-precision linear guide rails maintain long-term cutting stability. The integrated dust extraction and automatic lifting shield improve safety and keep the workspace clean, making it an ideal choice for professional aluminum fabrication.

CNC Double-Head Any Angle Cutting Saw

CNC dual-head saw for Al profiles. Servo absolute memory, no homing. Supports data & barcode.Safe.

CNC Connector Aluminum Profile Cutting Saw

CNC 9o° saw for Al connector profiles. PLC-controlled auto feeding. Hard alloy blade for hish-speed efficient mass production

Intelligent Laser Cutting & Milling Center

Intelligent laser cutting & milling center for Al. 4 spindes + laser, 45-135°. ERP/design software integration, o.1mm accuracy.

Double-Head 3000mm CNC Drilling & Milling Machine

CNC dual-head 300omm drilling/miling for Al, Dual spindes, 3-sided table, CAD import & barcode support for automated productio

F.A.Q.

Frequently Asked Questions

How is stability ensured during long-length machining?

Full-servo motion control with rack-and-pinion drive guarantees smoothfeeding and consistent accuracy throughout the entire 3000 mm range.

Can both heads operate independently?

Yes. Each spindle can work separately or in synchronization, depending onthe program and part requirements.

What profiles can it handle?

It’s ideal for aluminum window, door, and curtain wall profiles up to 3meters long.

What is the maintenance requirement?

Regular hydraulic oil checks, air system cleaning, and basic lubricationkeep the machine performing reliably.

Can this machine be customized for specific needs?

Yes. As a leading manufacturer, WEIKE CNC proudly offers OEM and ODMservices, allowing fully customized and flexible configurations to meetyour material types, cutting length requirements, or production linespecifications.

What maintenance is required for optimal performance?

Routine maintenance includes checking and lubricating the guide rails,ensuring spindle alignment, and cleaning debris after each shift.Following these steps helps maintain precision and prolong the machine’slifespan.
